8-PORT 1U RACK-MOUNT CONSOLE KVM

Introduction

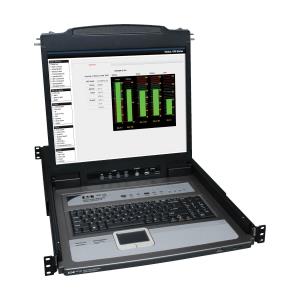

Tripp Lite's B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.


The B020-U08-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.

The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

Saves Space and Money

? Combines an 8-port KVM switch, 19" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
? Mounts into 19"-wide rack, 26"-38" deep
? Control up to 8 servers from a single, easily accessible console - ideal when rack space is at a premium
? Includes eight P778-Series cables that support computers with either PS/2 or USB connections
? Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
? Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server

Simplifies IT Tasks

? Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
? Hot pluggable; add or remove computers without having to power down the switch
? Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19" LCD

? Extra-wide display makes multitasking easier
? Supports video resolutions up to 1280 x 1024
? DDC emulation allows optimal output to the LCD

Multi-Level Password Security

? Enhances security by limiting access to an administrator and up to 4 local users
? Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

? Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
? A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a Tripp Lite B051-000 IP Remote Access Unit
? An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers
? Compatible with all major operating systems for easy integration into your existing structure
? Firmware is upgradable with included cable and utility
? Heavy-duty steel housing stands up to frequent use


? Occupies just 1U of space in a rack-mountable drawer

? 19" LCD screen supports video resolutions up to 1280 x 1024

? Simplifies IT tasks with easy switching between all 8 ports

? Provides 2-level password security (administrator and user)

? Combo cables (included) connect to PS/2 or USB servers

System Requirements


? Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
? P778-006 USB/PS2 combo KVM cable kit is required for each connected computer/server
? Compatible with all major operating systems
? Power consumption: 120V, 60Hz, 28.5W; 230V, 50Hz, 29.1W

Package Includes


? B020-U08-19-K 1U rackmount console KVM switch with 19" LCD
? (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits
? USB/PS2 combo console cable kit
? RJ11 to DB9 firmware upgrade cable
? C13 to 5-15P power cord
? Grounding wire
? Rackmount hardware
? CD with owner's manual
? Quick start guide
