Q1961-xte 7 Mm 8.3 Fps Explosion-protected Thermal Camera

Introduction

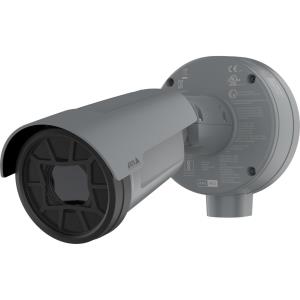

AXIS Q1961-XTE Explosion-Protected Thermal Camera

Certified for Zone and Division 2 hazardous locations, this explosion-protected, thermometric camera can remotely monitor temperatures and trigger temperature-based events. So, you can avoid unwanted downtime in production and plan for predictive maintenance.

What’s the temperature? Thermometric!

AXIS Q1961-XTE can measure temperatures from -40 °C to 350 °C (-40 °F to 660 °F).* It will send a notification if the temperature exceeds or falls below a set threshold which could indicate that the equipment is getting close to overheating, or there’s a leak in the system. It will also send a notification if the temperature increases or decreases too rapidly. This thermal camera supports up to 10 configurable polygonal detection areas. And spot temperature reading lets you see the exact temperature in specific areas. Furthermore, it can be integrated with process control systems, so you can create a data-driven sensory network and gain deeper insights into your processes.

Smart and accurate

This thermometric camera can remotely monitor temperatures, so you don’t need to be on site to know if your equipment is getting close to overheating. Smart filtering will disregard uninteresting objects such as the warm exhausts of passing work vehicles, resulting in fewer false notifications. Thanks to edge-to-edge technology, you can connect, for instance, a network speaker to enable audio alarms. And through metadata, you’ll have access to temperature statistics. This thermometric camera also offers support for powerful analytics.

Cost-efficient coverage in hazardous areas

AXIS Q1961-XTE is designed and certified for Zone and Division 2 explosion-prone applications (Zone 2,21 and Class I/II/III Division 2 according to ATEX/IECEx/cULus). This cost-efficient camera is compact and lightweight, and it supports PoE for easy and flexible installation. Featuring a 7 mm lens, it offers wide area coverage. Electronic image stabilization (EIS) provides smooth video even in scenes with vibrations. Furthermore, this sturdy camera is IP66- and IP67-rated for protection against the ingress of water and dust. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
