Mge Galaxy 3500 10kva 400v With 2 Battery Modules

Introduction

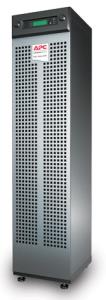

APC MGE Galaxy 3500, 8000 Watts / 10 kVA,Input 400V 3PH / Output 400V 3PH, Extended runtime model.

Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start-Up Service, User Manual.

Availability
- Dual mains input: Increases availability by allowing the UPS to be connected to two separate
power sources
- Scalable runtime: Allows additional runtime to be quickly added as needed
- Hot-swappable batteries: Ensure clean, uninterrupted power to protected equipment while
batteries are being replaced
- Generator compatible: Ensure clean, uninterrupted power to protected equipment when generator power is used
- Automatic internal static bypass: Supplies utility power to the connected loads in the event of a
UPS overload condition or fault
- Battery modules connected in parallel: Delivers higher availability through redundant batteries

Serviceability
- Batteries that can be replaced by qualified personnel: Increases availability by allowing qualified
personnel to perform upgrades and replacement of the batteries reducing the Mean Time To
Repair (MTTR)
- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Shippable with modules installed: Enables pre-installation UPS staging and testing and faster
installation
- Modular design: Provides fast serviceability and reduced maintenance requirements via selfdiagnosing, field-replaceable modules

Manageability
- Network manageable: Provides remote management of the UPS over the network
- InfraStruXure Central Compatible: Enables centralized management via InfraStruXure Central
- LCD: Alphanumeric display which displays system parameters and alarms
- Audible alarms: Provides notification of changing utility power and UPS conditions
- Programmable frequency: Ensures compatibility with different input frequencies
- LED status indicators: Quickly understand unit and power status with visual indicators
- SmartSlot: Customize UPS capabilities with managements cards

Total Cost of Ownership
- Input power factor correction: Minimizes installation costs by enabling the use of smaller
generators and cabling
- Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature
- Manual maintenance bypass: Reduces installation costs by eliminating the need for an external
mechanical bypass
- Intelligent battery management: Maximizes battery performance, life, and reliability through
intelligent, precision charging

Protection
- Frequency and voltage regulation: Gives higher application availability by correcting poor
frequency and voltage conditions without using the battery
- Safety-agency approved: Ensures the product has been tested and approved to work safely with
the connected service provider equipment and within the specified environment. UL, FCC, CE,
C-Tick approvals
- Cold-start capable: Provides temporary battery power when the utility power is out
